Understanding Setback and Plot Ratio Rules for Building Factories in Malaysia

When planning to develop a factory or warehouse on industrial land in Malaysia, two important factors will determine how much of your land can actually be built upon: setback and plot ratio. These urban planning tools are used by local councils to regulate spacing, building density, and layout safety. Let’s break down what these terms mean and how they affect your industrial property investment.

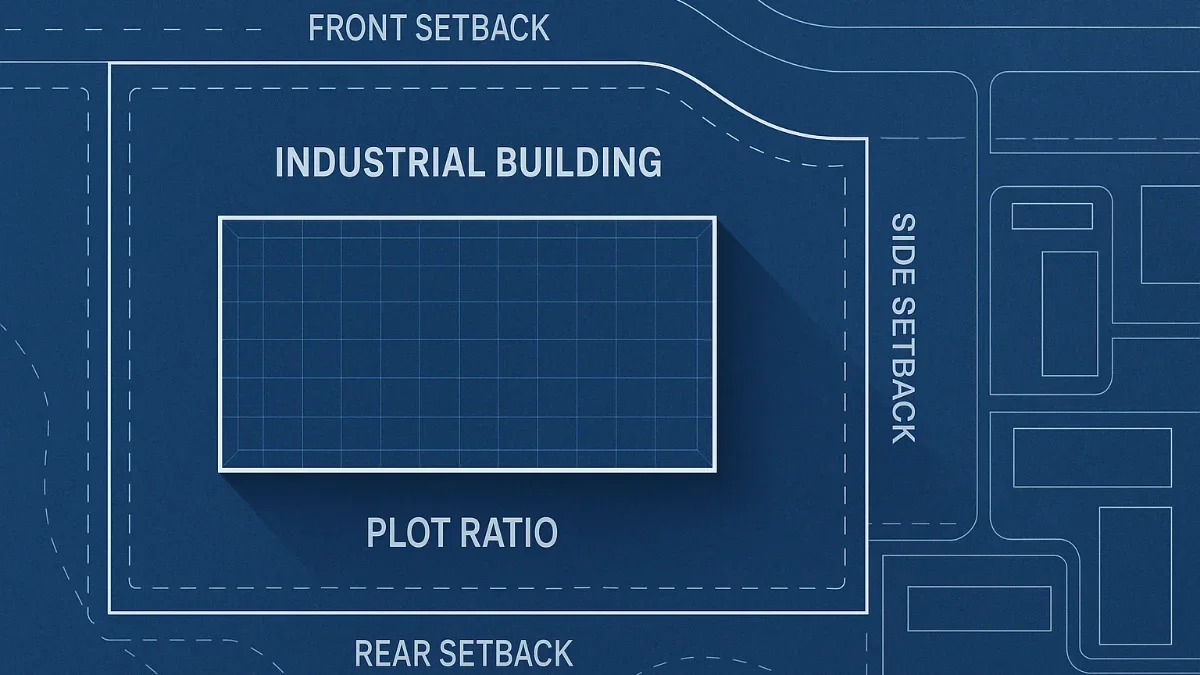

What Is Setback in Industrial Land Development?

Setback refers to the minimum required distance between a building and the boundary of the land it sits on. Setbacks help ensure safety, access, ventilation, fire compliance, and utility planning.

Typical setback requirements for industrial buildings may include:

• Front setback: 20–30 feet (for access roads or loading bays)
• Side setback: 10–20 feet (depending on plot size and fire requirements)
• Rear setback: 10–30 feet (for drainage or service lane)

Setback distances may vary depending on state authority, plot size, zoning type (light vs heavy industry), and whether the building is detached, semi-detached, or attached.

What Is Plot Ratio and Why Does It Matter?

Plot ratio is the ratio between the total built-up area (floor space) of a development and the area of the land. It controls the density of development.

Formula:
Plot Ratio = Total Floor Area ÷ Land Area

For example, if you have a 40,000 sq ft land parcel and a plot ratio of 1:1, the maximum allowable built-up area is 40,000 sq ft. If the plot ratio is 1.5:1, you can build up to 60,000 sq ft (across multiple floors).

Typical industrial plot ratios in Malaysia:

• Light Industry: 1:1 to 1.5:1
• Heavy Industry: 0.8:1 to 1:1
• Special Zones: Can be higher based on local council approval

How Setback and Plot Ratio Affect Buildable Area

Let’s say you buy a 50,000 sq ft industrial lot in Selangor. Here’s a sample breakdown:

• Setback restrictions reduce usable land by ~10,000 sq ft
• Usable land = 40,000 sq ft
• Plot ratio = 1.0 ? you can build 40,000 sq ft total (single or multi-storey)

This means your final warehouse or factory design must balance land footprint, vertical floor space, and authority restrictions.

Can Setback and Plot Ratio Be Adjusted?

Yes — but only with formal approval. Developers or owners can submit a Kebenaran Merancang (Planning Permission) application to the local authority (PBT) for:

• Setback relaxation
• Increased plot ratio (usually subject to infrastructure limits)

However, approvals are case-by-case and depend on state planning guidelines, zoning type, and environmental concerns.

Start Your Search for Agricultural, Industrial, or Land Investment

• Explore Agricultural and Development Land for Sale
• Browse Industrial Properties in Rural Areas
• See Commercial Assets Supporting Agri-Supply Chains

Understanding setback and plot ratio is essential before designing or buying any industrial property in Malaysia. These rules directly affect your buildable area, costs, and compliance timeline. Always consult a qualified architect, planner, or industrial real estate expert to help you unlock the full potential of your land while staying within legal bounds.
